Active 1470016S Motorcycle Caliper Support (Brembo 40mm)
![Active Active](https://www.motoworld.com.sg/image/cache/catalog/logo/LEE_Active%20logo-100x100.png)
-
S$158.00
or 3 installments of S$52.67 with
![atome atome](catalog/view/theme/default/image/payment/atome.png)
Material: Aluminum2017S (Anodized Treatment)
Color: Silver
Corresponding Caliper: BREMBO 40mm
Corresponding Rotor: STD Φ296 Double Disc

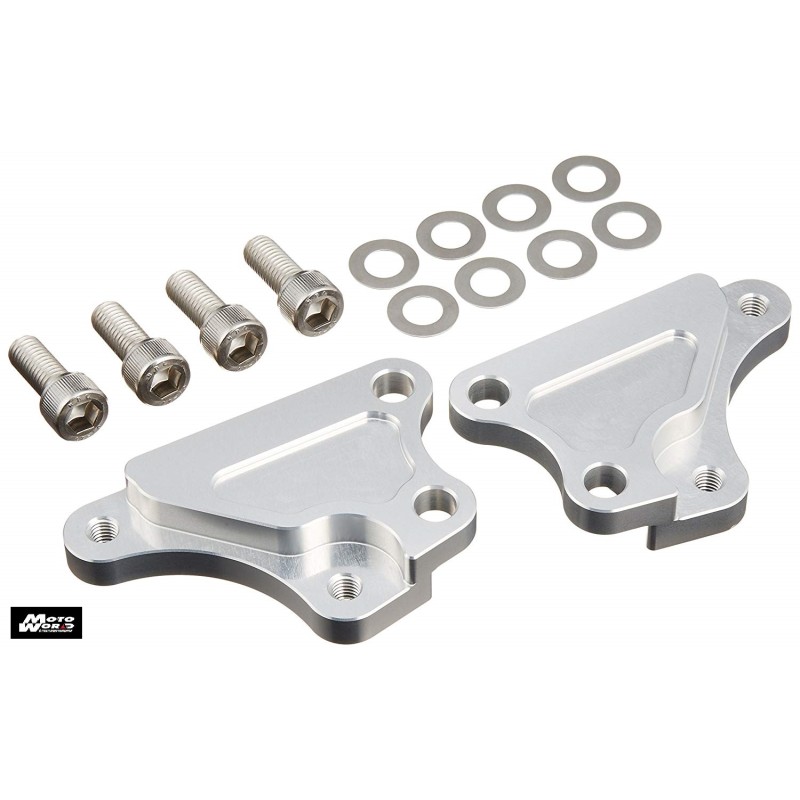

Included Parts: Stainless Steel Bolt for Caliper Mounting, 0.5mm Shim
It is a caliper support for combining calipers with mounting pitch of 40mm and 65mm to standard rotor size.
The material was anodized treated to aluminum cut-out, and ensuring high strength and high durability.
The 40mm pitch corresponding caliper support are all designed with [BREMBO 40mm Casting Caliper]. Please adjust it with the included shim in case of using to AP/NISSIN caliper because the center of the offset is 26.5mm. (It does not correspond to 6POT caliper.)
The product error correction of the caliper individual and the included shim are also valid.
The contact surface of the rotor and the pad changes by changing the caliper and the rotor. In that case, please use it by cutting the surface which will not interfere with the rotor of the pad and.
Caliper Bolt Pitch BREMBO 40mm: P1.5, brembo 65mm: P1.25, NISSIN: P1.25, TOKICO: P1.25
It is not usable to BREMBO 65mm pitch 2POT caliper.
Brand | Model | Year |
---|---|---|
Honda | CB400SF | 1997-2020 |
Honda | CB400SB | 2005-2020 |
Honda | Hornet 600 | 1998-2003 |
Honda | CBR900RR | 1992-1997 |
Honda | CBR600F4i | 2001-2002 |
Honda | CBR600F4 | 1999-2002 |
Honda | CB400SF Version S | 1996 |
Honda | CB1100 | 2010-2017 |
Honda | VTR1000F | 1997-2003 |
Honda | RVF400 | 1994-2000 |
